CAT5 LCD KVM IP Switch
It’s easy to set up the HT17xx IP KVM, just plug the cable into the appropriate port, no software needed, no complicated installation procedures, and no compatibility issues. Connect computers with compact RJ-45 connectors and Cat 5e/6 cable, transmitting distance is up to 100m.
Key Advantages & System Highlights
Integrated 1U Design
This series combines a 17-inch LCD monitor, keyboard, touchpad, and KVM switch in a compact 1U rackmount design. It helps operators manage multiple servers directly from the rack while saving valuable cabinet space in data centers, server rooms, and enterprise IT environments.
Local & Remote Access
With 1 local user and 1 remote user access, the series supports both on-site maintenance and remote server management. Operators can manage connected servers locally from the console or remotely over IP, improving flexibility for daily operations, troubleshooting, and emergency response.
Cat5 Cabling
The series uses Cat5e/6 cabling with RJ-45 ports to simplify server connections and reduce cable clutter inside the rack. It supports different server interface modules, including VGA, DVI, HDMI, and DisplayPort, making it suitable for mixed IT environments with different server types.
Secure HD Control
The series supports remote access with up to 1920 × 1080 @ 60Hz resolution, helping deliver clear and responsive server control. Built-in security features such as encrypted transmission, user permission management, strong password support, and event logging help protect remote access and improve operational control.
Product Features
Hardware Features
- 17” & 19” TFT LCD monitor, high definition and high resolution
- Rack-mountable in a 1U EIA system rack
- Full size keyboard with integrated number pad
- Trackball eliminates the need for a separate, external mouse
- Dual power supply
Local Console
- Controls up to 24 computers from a single console
- Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
- Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
- Support servers with VGA/DVI/HDMI/DP port
- Multiplatform client support – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
- Local Console, Browser, and AP GUIs offer a unified management interface
- Local resolution is up to 1280 x 1024@60Hz
- Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
- Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization
- Keyboard and mouse emulation to ensure the normal booting
- Auto scan feature for monitoring user-selected computer
- Hot pluggable–add or remove computers without having to power down the switch
Remote Console
- Adaptive 10 / 100 / 1000 Mbps network
- WEB browser-based remote management
- Resolution for remote console is up to 1920×1080@60Hz
- BIOS-level access
- Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
- Full screen or scalable video display
- Remote users and local users can control the same server/computer synchronously
- Support AES / DES / 3DES encryption
- Support audit function-allows the administrator to audit the device through the system log and operation log
- Exit Macros support
- Configurable user and group permissions for server access and control
- Support strong password
- Support firmware upgrade
Package Contents

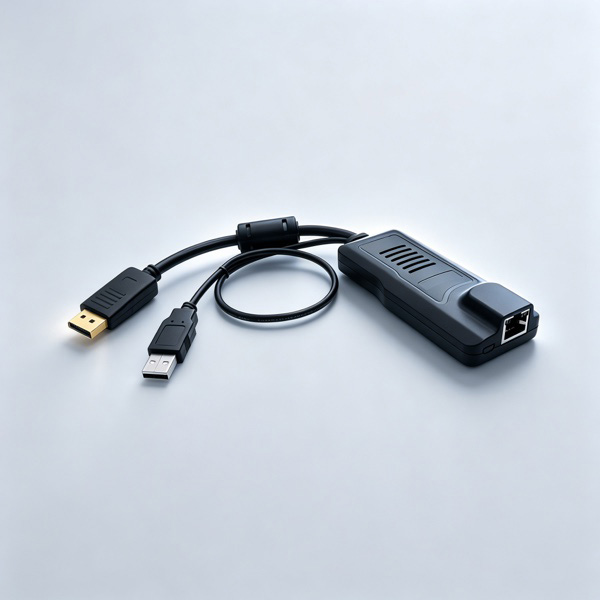

USB DisplayPort KVM
Adapter

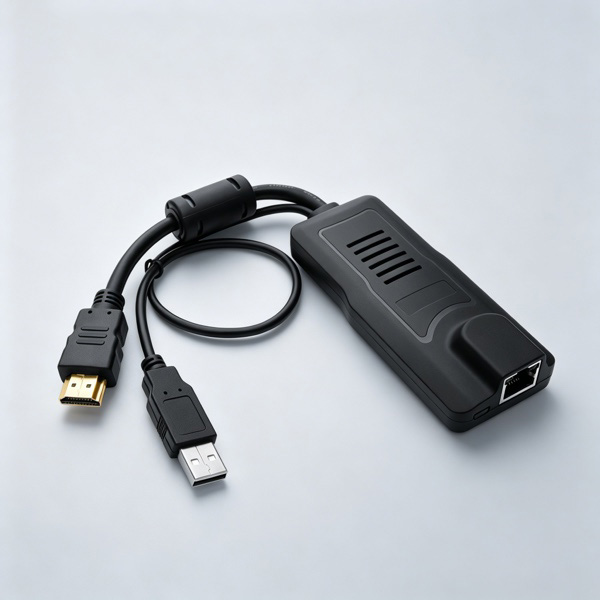

USB HDMI® KVM
Adapter

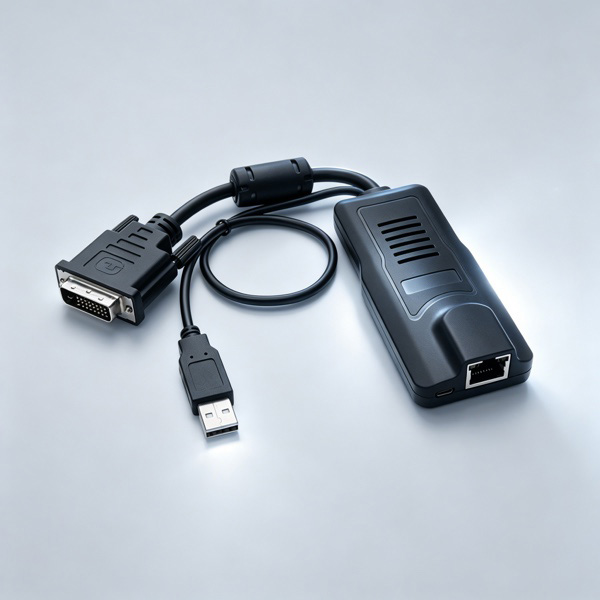

USB DVI KVM
Adapter

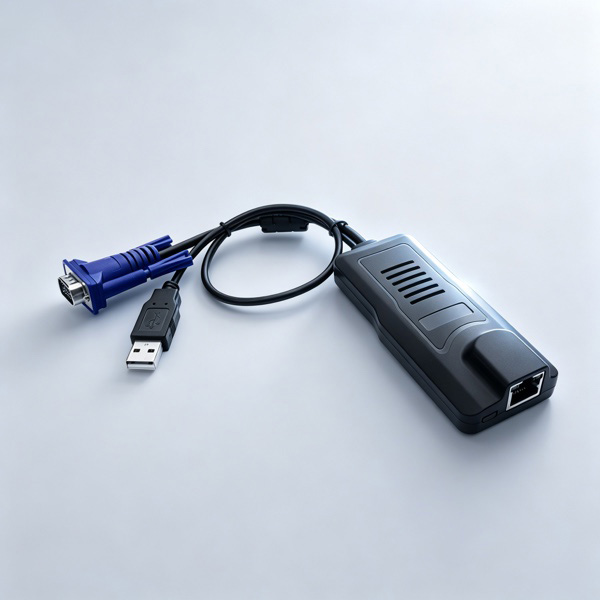

USB VGA KVM
Adapter

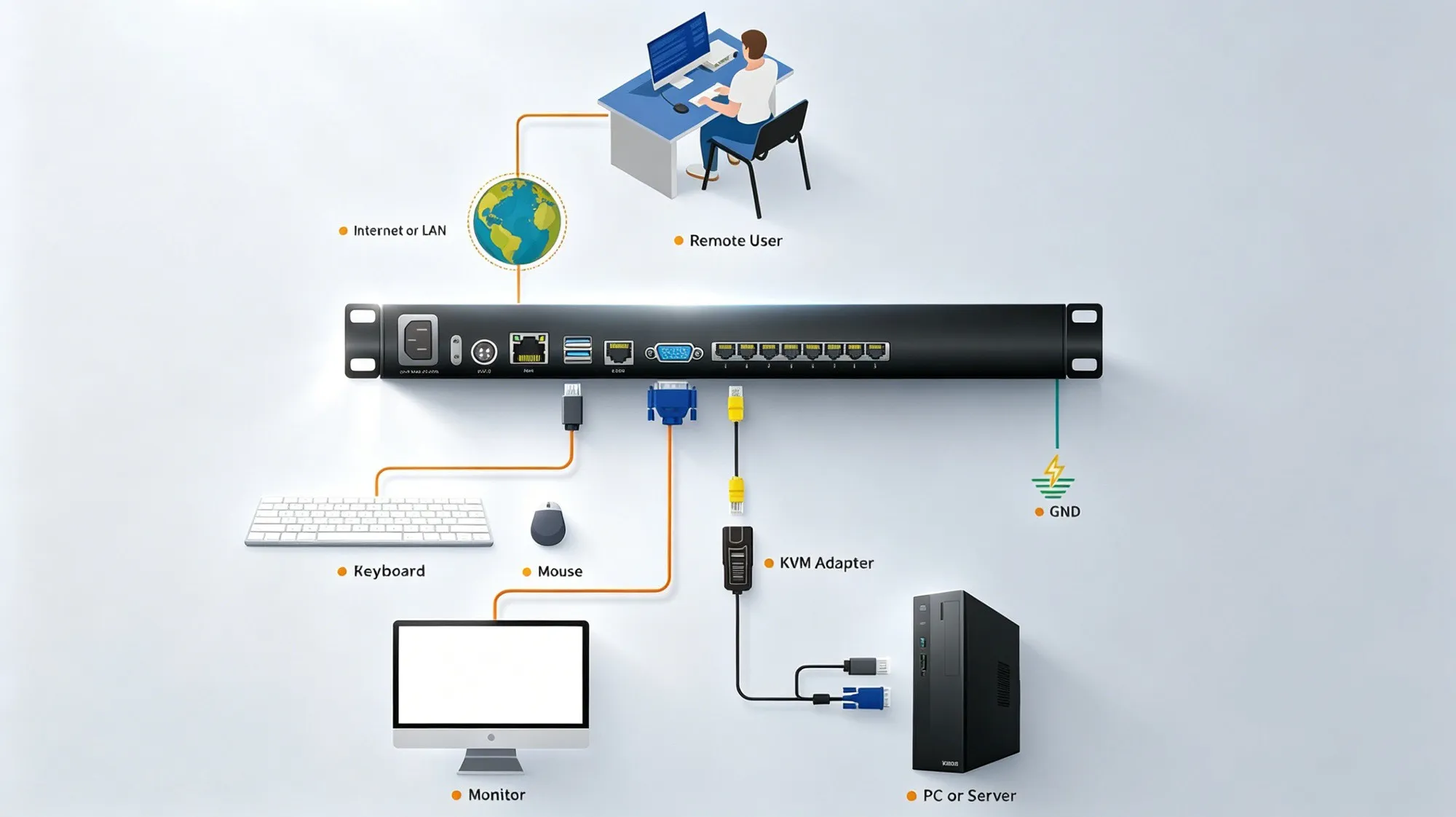

Connection Diagram
